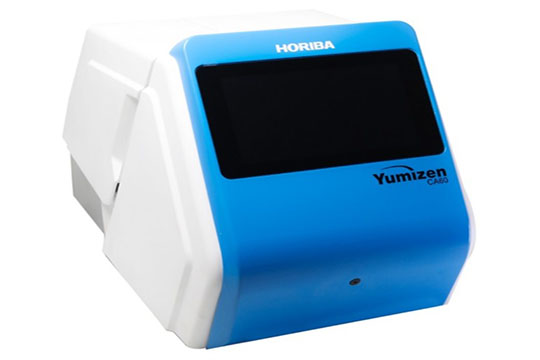

Yumizen CA60
Clinical Chemistry Analyzer
Yumizen CA60 is a compact semi-automatic clinical chemistry analyzer based on the Vertical Overlay Concept Design (VOCD), equipped with durable Multi Array Light System (MALS).
Wide Test Menu:
- Pre-programmed biochemistry & turbidimetric tests: Ready to use Yumizen CR Clinical Chemistry Reagents
- Multiple user programs can be stored
- Separate QC file: Easy quality monitoring
MALS Light Source:
- A complete range of LEDs optimized for Biochemistry and Turbidimetric tests: 8 wavelengths (340, 405, 505, 535, 560, 600, 635, 670 nm)
- Zero maintenance hardware configuration
- Accuracy, extended life and less power consumption
Advanced Flow Chemistry:
- Quartz glass flow cuvette: Accurate & error free results
- 18 μL flow cuvette - lower reagent aspiration: Economical
- Ease of testing: Use Flow Cuvette, Macro, Semi-micro or Micro Round tubes
Huge Memory Space:
- Over 100 K results can be stored
- Maintains patient history with ease
Secure & Easy Connectivity:
- USB 3.0 : 2 ports – Easy data transfer
- Network :10/100M/1000M, Ethernet RJ45 – LIS ready
User Friendly Interface:
- 7” Touch colored LCD
- Tile based menu configuration
- Easy to use
- Know results with the changing colors
| OPTICAL SYSTEMS | |
| Range of measurement | - 0.2 to 3.5 A all Wavelengths |
| Wavelengths | 340, 405, 505, 535, 560, 600, 635, 670 nm |
| Bandwidth | 10 nm ± 2 nm |
| Light source | LEDs |
| Settings | Monochromatic and Bi-chromatic |
| Measurement accuracy | CV ≤ 1% at 0.1 A CV ≤ 0.1% at 2 A |
| FLOW CUVETTE | |
| Cuvette | Quartz |
| Volume | 18 μL |
| Removable cuvette | Macro, Semi-micro & Micro round tubes (12 mm diameter) |
| FLUIDIC SYSTEM | |
| Aspiration volume | 100 μL to 5000 μL |
| Peristaltic pump | Continuous flow system |
| Operation type | Stepper motor |
| Nominal flow | 10 mL/min |
| THERMOSTAT SYSTEM | |
| Thermostatation range | 25º C to 37º C |
| Temperature accuracy | ± 0.5ºC |
| Temperature stability | ± 0.2º C in 30 minutes |
| METHODS OF CALCULATION | |
| Absorbance | |
| End point | |
| Kinetic | |
| Differential mode | |
| Fixed time | |
| CALIBRATION | |
| Factor | |
| Calibrator | |
| Calibration curve | |
| CALIBRATION CURVE | |
| Up to 5 Calibration Points | |
| Axis: Linear and Log | |
| Calculation Functions: Spline, Linear Regression, Quadratic Regression, Polygonal | |
| QUALITY CONTROL | |
| 3 Controls per Test | |
| Levey-Jennings Control Chart | |
| Westgard´s Rules | |
| PROGRAMMING | |
| All Yumizen CR pre-programmed Biochemistry & Turbidimetric tests | |
| Multiple user programs | |
| More than 100,000 patient results storage | |
| Quality control storage of the last results | |
| PROCESSING & CONNECTIVITY | |
| CPU | H6 Quad-core 64-bit 1.8GHZ ARM Cortex™-A53 |
| USB 3.0 Ports | 2 x USB 3.0 Host |
| Onboard Network | 10/100M/1000M, Ethernet RJ45 |
| PRINTER AND SCREEN | |
| Thermal printer | |
| Screen | 7” Touch Colored LCD |
| POWER CONSUMPTION | |
| Measurement | 5W |
| Standby | 2W |
| EXTERNAL POWER SUPPLY | |
| Voltage | 100V-240V |
| Frequency | 50/60 Hz |
| Output power | 30W |
| Output Voltage | 15V |
| PHYSICAL SPECIFICATIONS | |
| Operating Temperature | 10-35 °C |
| Max Rel humidity | 85 % |
| System Dimensions (HxWxD) | 310 x 245 x 440 mm |
| System Weight | 5.465 kg |
